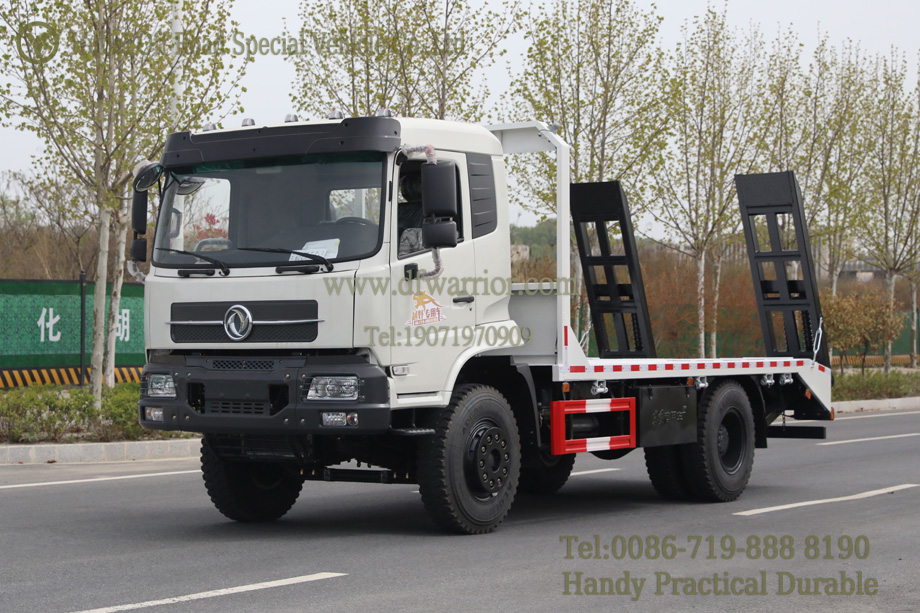

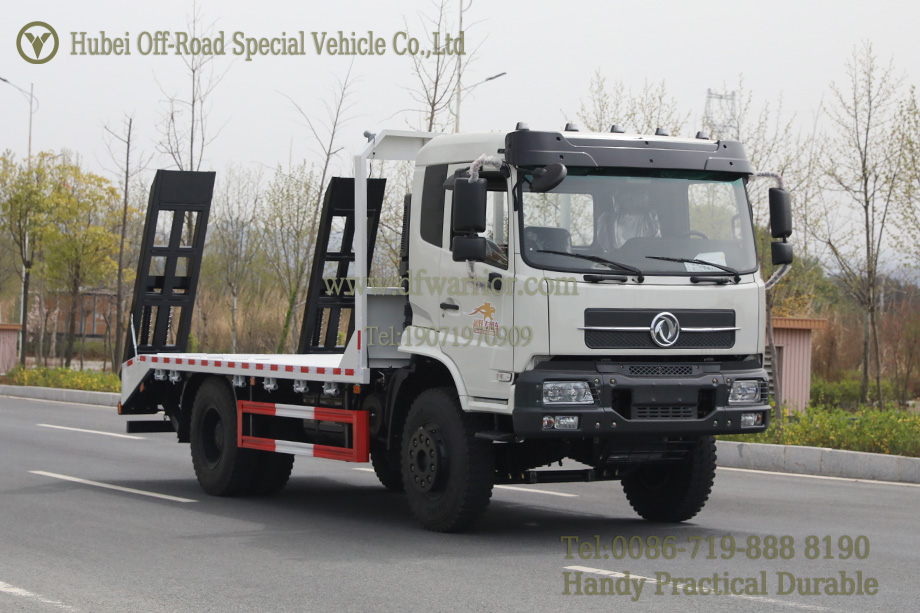

Dongfeng
| Basic technical status | |
| Engine | WD615.62 |

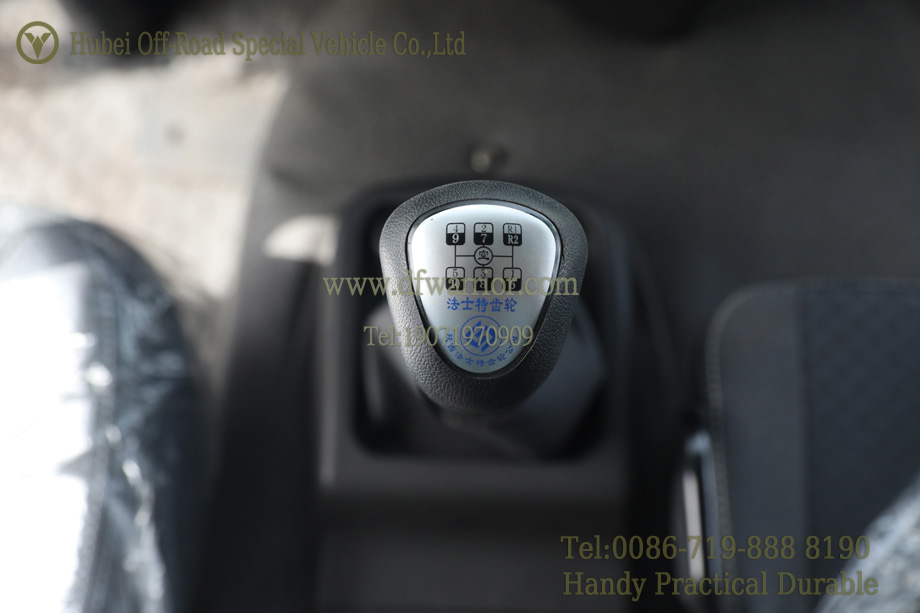

| Gearbox | Manual ten-speed |
| Front Axle/Rear Axle | 5T/10T |

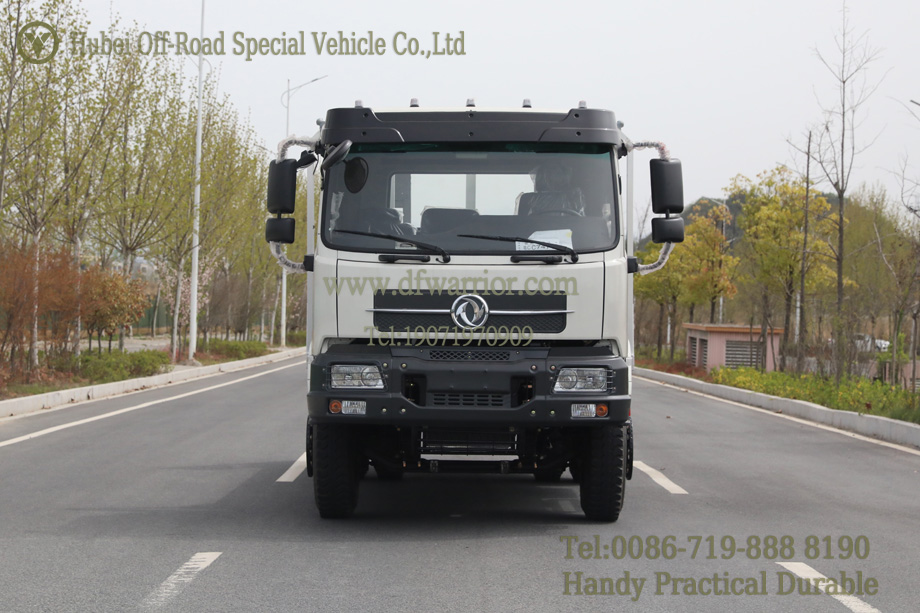

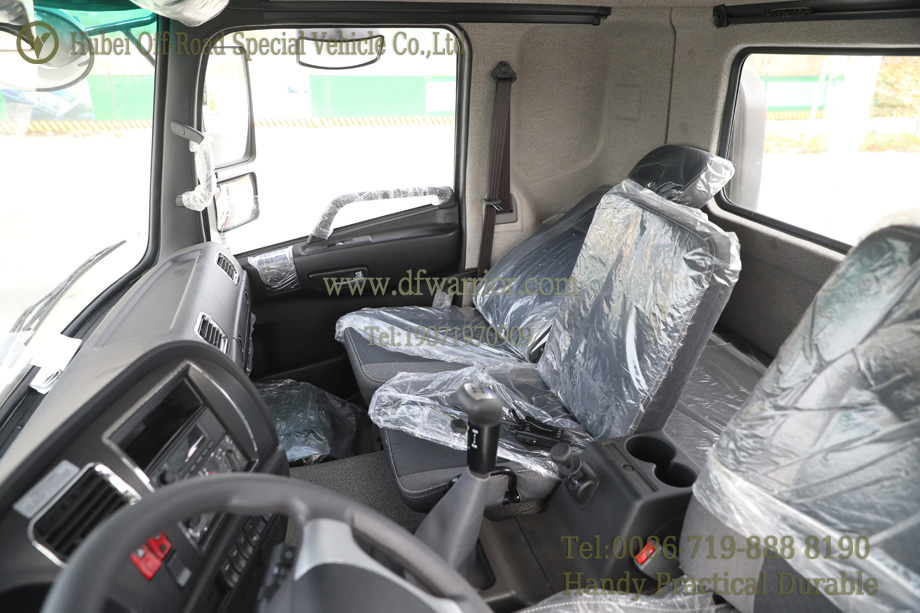

| Cab | one and a half rows, flat-head |
| Tyre | 11.00R20(6+1) |
| Electrical appliance | 24V circuit system |

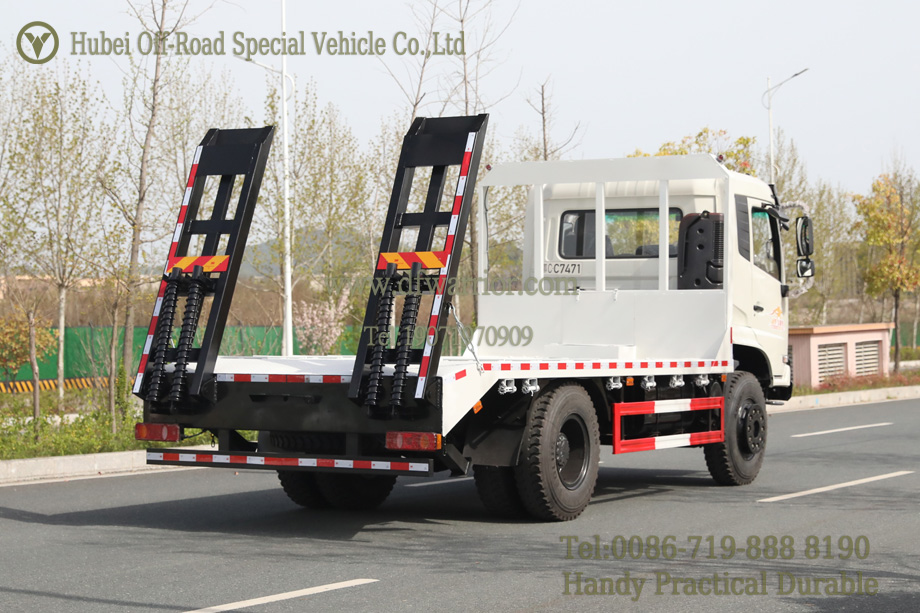

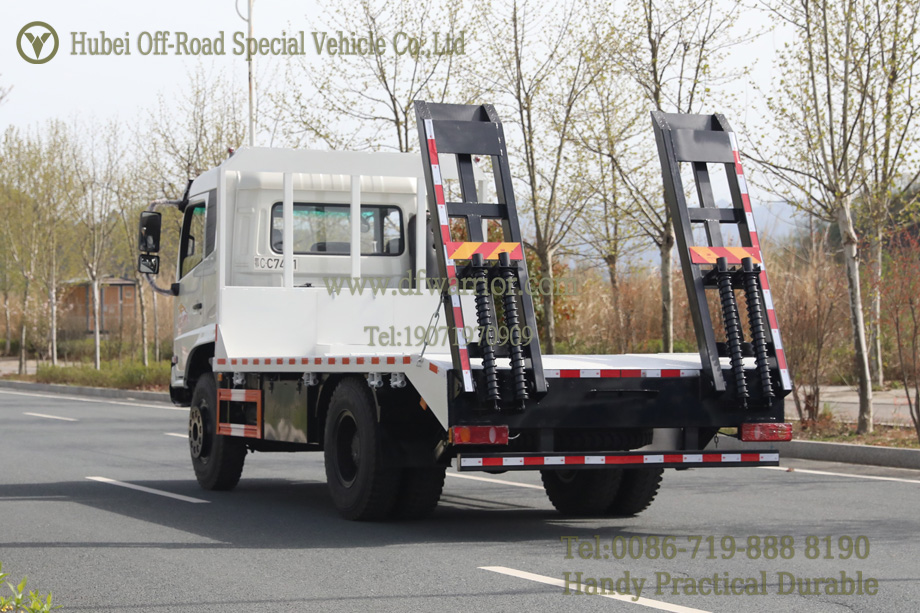

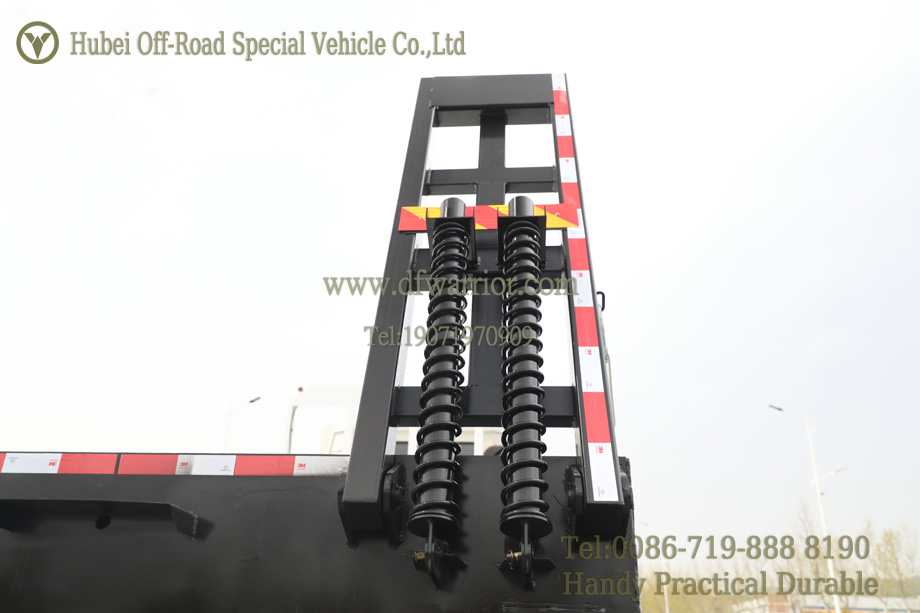

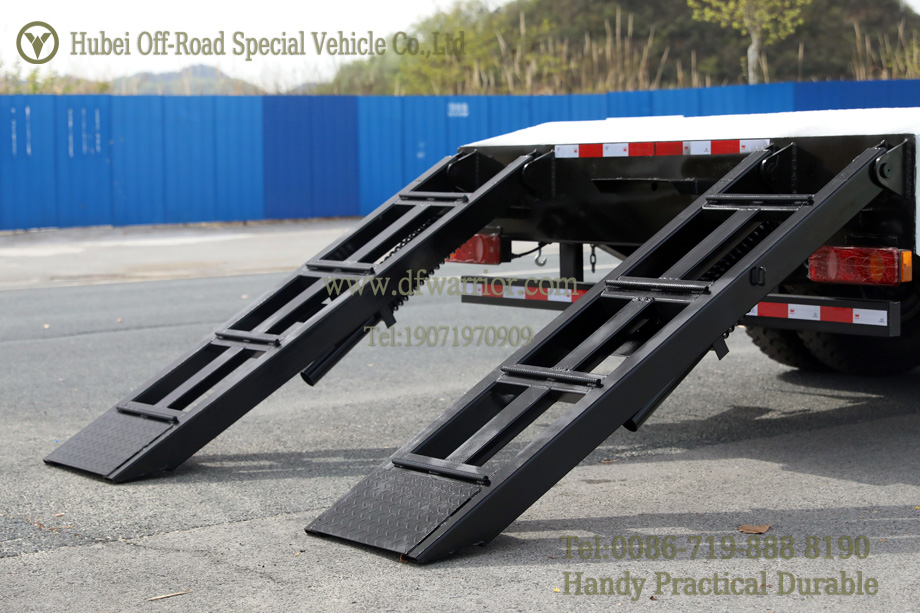

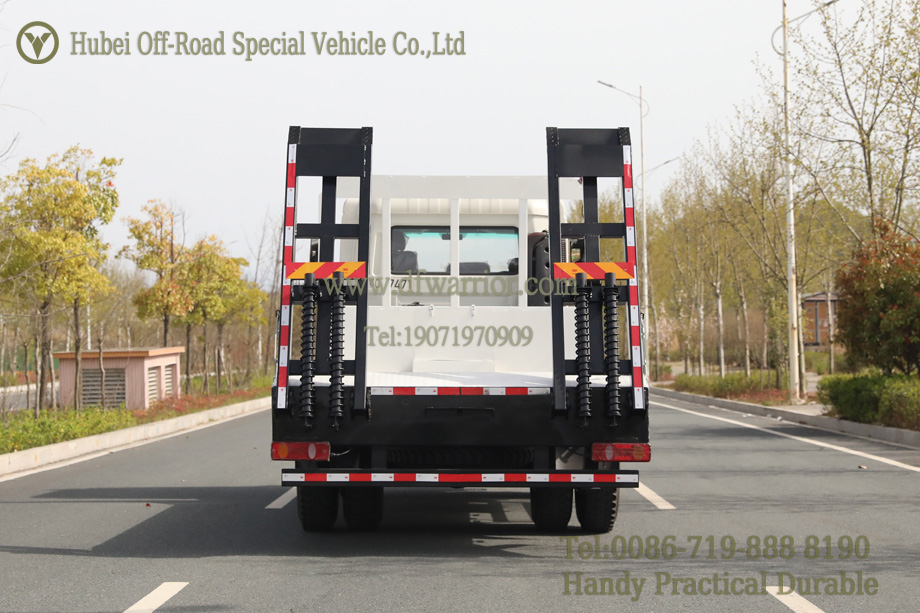

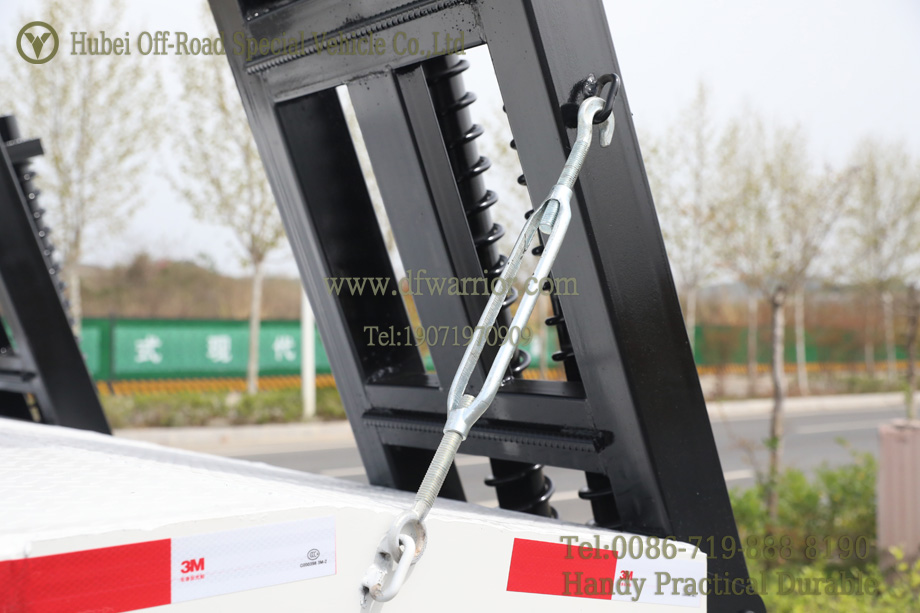

| others | The rear of the plate has a folding ladder with hydraulic cushioning; the height of the plate to the ground is 1220mm, the plate is equipped with a number of flutes, and there are a number of rope tighteners on both sides of the plate; the front of the plate is equipped with a tool box. |
| Basic parameter | ||
| Size parameters | Overall Dimensions （mm） | 7640×2550×3080 |
Plate size（mm） | 5000×2550 | |
Curb Weight(kg) | 7800kg | |
| GVW(kg) | 18000kg | |
| Wheelbase (mm) | 3950mm | |
| wheelspan（mm） | 2180/1900 | |
| Passengers(persons) | 3 | |
| Performance parameters | Power (KW) | 196kw |
Displacement | 9726ml | |
| The volume of the fuel tank (L) | 300L | |
| Maximum climbing | 60° | |
| Maximum speed | ≤90km/h | |
Minimum Ground Clearance | 340mm | |
Approach Angle /Departure Angle | 21°/12° | |
Note: This configuration is for reference only, and the specific situation is based on the real car.
